SH型泵雙吸泵應用范圍
供吸送清水及物理化學性質類似于水的液體。
本型泵揚程在9米至140米時，流量為126米3/時至12500米3/時。液體較高溫度不得超過80℃。適用于工廠、礦山、城市給水、電站、大型水利工程、農田灌溉和排澇等用，48SH－22型大型泵還可作熱電站循環(huán)泵用。
SH型泵雙吸泵結構特點

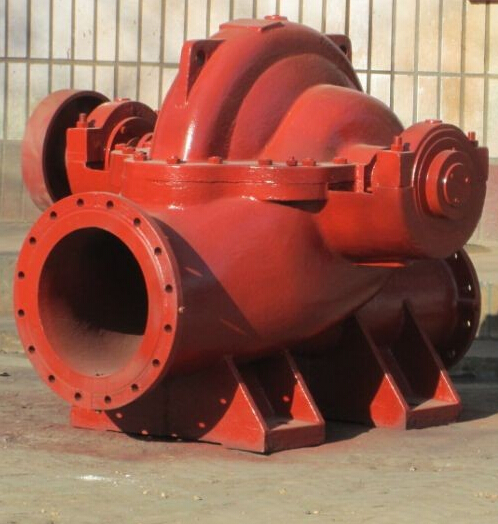

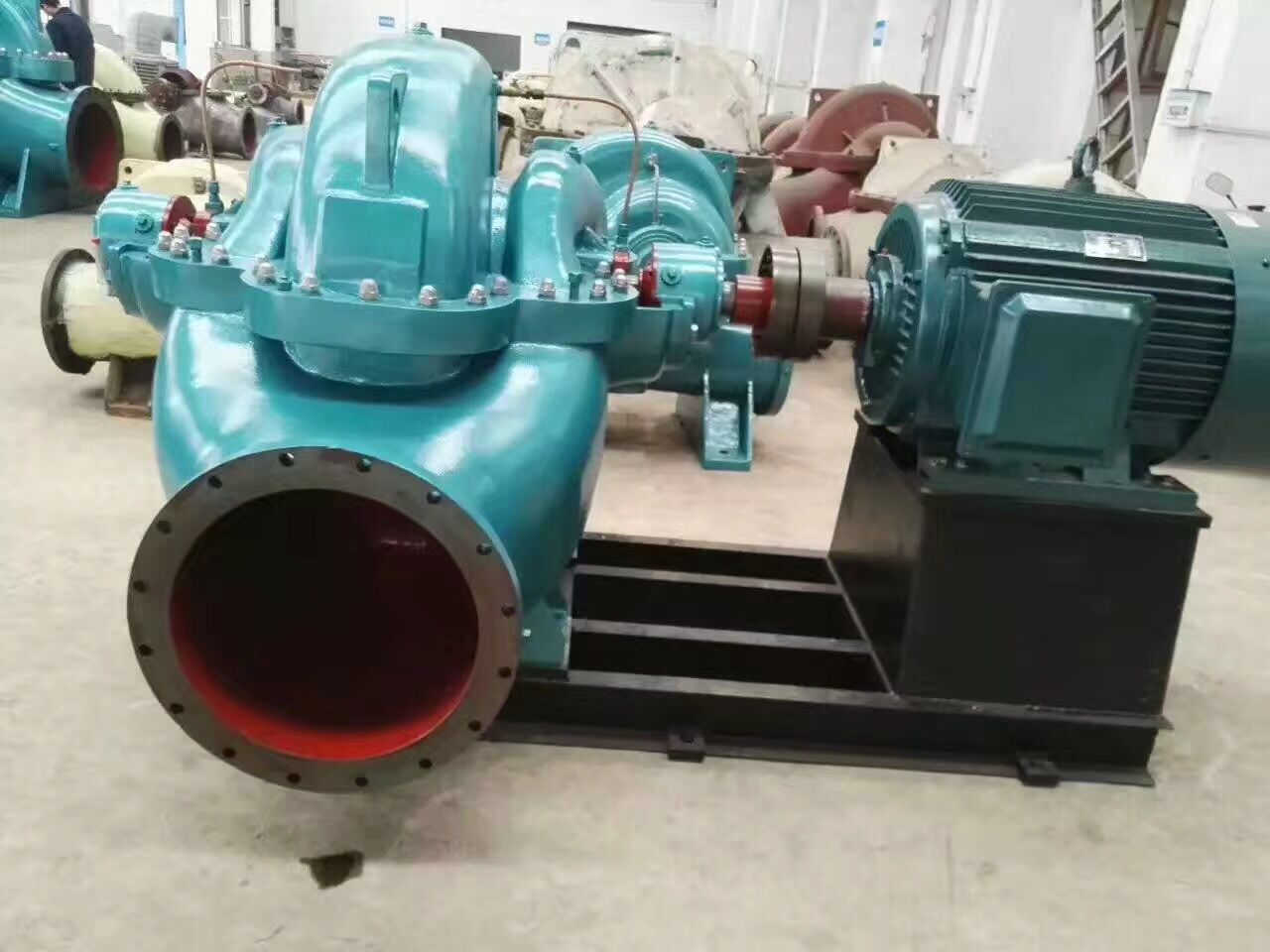

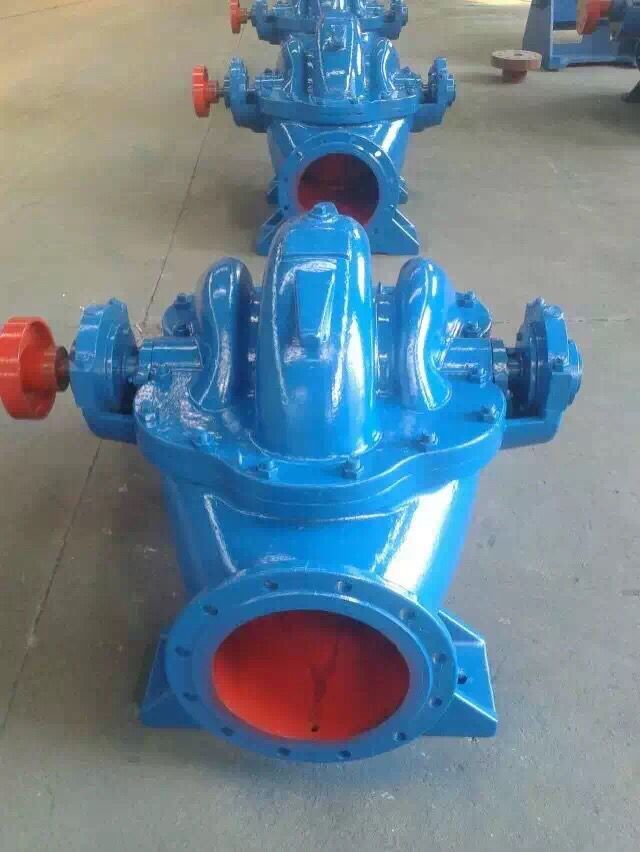

SH單級雙吸中開泵為臥式安裝，吸入口和吐出口均在泵軸中心線下方，與泵軸線垂直，檢修時不需拆卸進、出水管路，拿開泵蓋即可取出轉子部件，泵主要由泵體、泵蓋、葉輪、密封環(huán)、軸套、軸承等零部件組成，泵體與泵蓋構成葉輪工作室，葉輪軸向力通過葉片對稱布置平衡。
SH型泵雙吸泵工作條件
泵出口直徑 DN 80~800mm
流 量 Q ≤11600m3/h
揚 程 H ≤200m
工作溫度 T ≤105℃
固體顆粒 ≤80mg/L
工作許用壓力 ≤25
許用試驗壓力 ≤37.5
SH型泵雙吸泵性能參數(shù)
SH | S | SH | S | SH | S | SH | S |
150S97 | 12SH-19 | 300S19 | 24SH-6 | 600S100 | 900S35 | ||
6SH-6 | 150S78 | 12SH-28 | 300S12 | 24SH-9 | 600S75 | 900S23 | |
6SH-9 | 150S50 | 14SH-6 | 350S125 | 24SH-13 | 600S47 | 1000S46 | |
8SH-6 | 200S95 | 14SH-9 | 350S75 | 24SH-19 | 600S32 | 1000S31 | |
8SH-9 | 200S63 | 14SH-13 | 350S44 | 24SH-28 | 600S22 | 1000S22 | |
8SH-13 | 200S42 | 14SH-19 | 350S26 | 700S90 | 1000S44 | ||
250S95 | 14SH-28 | 350S16 | 700S56 | 1100S28 | |||
10SH-6 | 250S65 | 400S90 | 700S35 | 48SH-22 | 1200S24 | ||
10SH-9 | 250S39 | 400S57 | 800S76 | 1200S35 | |||
10SH-13 | 250S24 | 20SH-6 | 500S98 | 800S47 | 1400S52 | ||
10SH-19 | 250S14 | 20SH-9 | 500S59 | 32SH-19 | 800S32 | 1400S30 | |
12SH-6 | 300S90 | 20SH-13 | 500S35 | 800S22 | 1400S22 | ||
12SH-9 | 300S58 | 20SH-19 | 500S22 | 900S80 | 1400S15 | ||
12SH-13 | 300S32 | 20SH-28 | 500S13 | 900S58 |
